Products Description
Brass and steel turned Components are very common for us to make. With our multiple machining capabilities, not only the brass and steel turned components. But also other materials and other technologies, like rubber via vacuum casting. Metal clips via sheet metal and so on. We can make them separately and help to fit together. Share us the assembly guide and request. A real final assembly testing can make sure the parts fit well before shipping. We do with No MOQ, No extra cost for the assembly testing…
--------------------------- CNC Machining Tolerances-------------------------
We follow ISO 2768 Standards for CNC Machining
| Limits for Nominal Size | Plastics (ISO 2768-M) | Metals (ISO 2768-F) |
| 0.5mm to 3mm | +/-0.1mm | +/-0.05mm |
| Over 3mm to 6mm | +/-0.1mm | +/-0.05mm |
| Over 6mm to 30mm | +/-0.2mm | +/-0.1mm |
| Over 30mm to 120mm | +/-0.3mm | +/-0.15mm |
| Over 120mm to 400mm | +/-0.5mm | +/-0.2mm |
| Over 400mm to 1000mm | +/-0.8m | +/-0.3mm |
| Over 1000mm to 2000mm | +/-1.2mm | +/-0.5mm |
|
Over 2000mm to 4000mm |
+/-2mm | - |

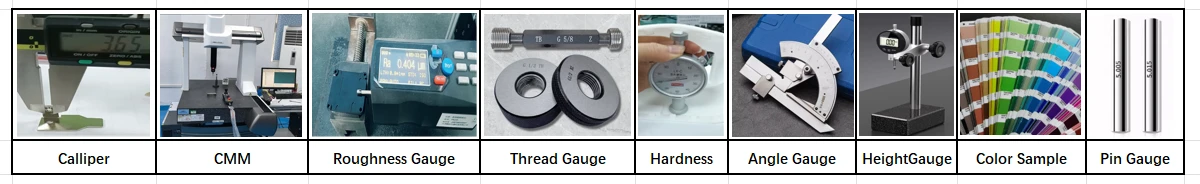

With our strictly quality control standards and various quality checking equipment.
No worry you always receive the parts with unstable quality.
How we make sure your products can be fit the assembly well
Even the separate components were totally meet the tolerance request with the design drawings, sometimes, when go for the real assembly stage, it has the assembly issues. At XC Precision, we pay attention to the following steps to avoid the assembly issues.
1. Share us the assembly guide and before machining, do DFM analysis, use 3D models to conduct virtual assembly interference checks. If needed, Reserve a reasonable assembly gap of 0.01 to 0.02mm according to the actual process
2. During the machining process. Adopt the "three same" principle: the same positioning reference, the same clamping direction, and the same measurement reference
3. Strictly control geometric tolerances rather than merely dimensions. Many assembly problems stem from deviations in positional and verticality
4. Full inspection and real assembly test before shipping
Besides that, at XC Precision, we have many other relative technologies to provide, like Sheet metal fabrication, CNC machining, 3D printing, Vacuum casting…so we can provide really one stop services. Make all the parts from one supplier, it can reduce the risk of assembly issues.
Request a quote in 24 hours.
