Products Description

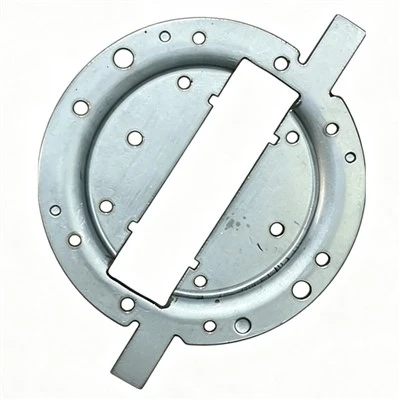

Our professional convex stamping services are used to make parts for automotive, fuel cell, and electronic components. Create precise raised features, ribs, and embossing on stainless steel and aluminum. These features designed on the products can enhance structural strength, or enlarge heat dissipation of the motor housing…Custom made and No MOQ at XC Precision.
----------------Stamping and Punching Manufacturing Capabilities----------------
|
Equipment Name |
Brand and Type |
QTY |
|
Hydraulic Machine |
YSB800T (800T) |
5 |
|
NCT Machine |
AMADA2510(Japan) |
2 |
------------------------ Convex Stamping Process Flow--------------------------
CAE Simulation (Critical to minimize trial iterations and reduce development risk)
We begin with CAE (Computer-Aided Engineering) simulation to analyze the forming behavior of convex features. Based on simulation results, we optimize blank dimensions and pre-form shapes before any physical tooling is made.
Tooling Design & Manufacturing (Right tooling = consistent quality)
Custom Tool Design to the specific deformation characteristics - whether convex (material pushed upward) or concave (material pressed downward). Including the Punch corner radii, Die clearance, Tool material selection
Forming Production (Step-by-step forming prevents over-thinning and material fracture)
Forming is executed on either hydraulic presses (for deeper draws and controlled speed) or mechanical presses (for high-speed, high-volume production).
Trimming & Post Processing
After forming, parts undergo finishing operations to meet assembly requirements. Should confirm the flatness calibration, make sure burr removal / deburring
Ready to Elevate Your Design with Convex Features
Contact us to discuss how we can integrate complex convex patterns into your next project
